Commercial Undercounter Refrigerator
A compact single-door stainless steel undercounter refrigerator based on the XFE650LC chilled reference configuration.
PRODUCT CONFIGURATION REFERENCEView full image ↗ (opens in a new tab)
Review the reference configuration. Confirm the supplied specification for your project.

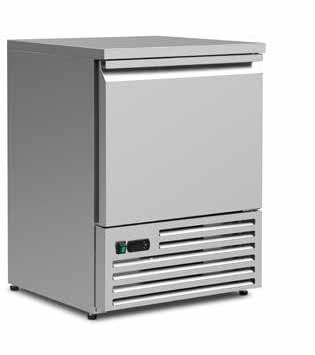

HR650 series image shared by the catalogue LC refrigerator and LD freezer; this page specifies only the LC reference. Final configuration is confirmed per project.
The HR650 catalogue page lists the XFE650LC refrigerator alongside a separate LD freezer. This page covers the LC chilled model only: 650 × 600 × 868 mm, 150 L catalogue net capacity, +2 to +8°C and ventilated refrigeration. Use the reference for a compact kitchen storage position and confirm counter clearance, service access and electrical requirements. It is a single-door storage cabinet rather than a multi-door preparation table.
Reference Configuration
Reference configuration and project-confirmed fields are identified below. Final specification is confirmed according to project requirements.
- Reference source
- 2026 Zhonghe catalogue, PDF page 52 / printed page 49, XFE650LC column
- Reference model
- XFE650LC
- Reference dimensions
- 650 × 600 × 868 mm
- Reference net capacity
- 150 L
- Reference temperature
- +2 to +8°C
- Reference rated power
- 220 W
- Reference cooling
- Ventilated
- Construction
- Stainless steel; grade: Confirm per project
- Voltage / frequency and refrigerant
- Confirm per project
- Destination-market approvals
- Confirm per project
Compact storage rather than a preparation line
Choose this single-door format for a defined storage position. For an extended work surface or multiple preparation compartments, review the separate refrigerated prep-table page.
Features
- Single solid-door storage layout
- Catalogue adjustable shelves with GN1/1 accommodation
- Adjustable legs in the catalogue reference
Applications
- Restaurant kitchen chilled storage
- Cafe back-of-house storage
- Distributor compact refrigeration projects
Customization options
- Finish and installation layout: Customizable
- Door and shelf configuration: Confirm per project
- Electrical supply and final configuration: Configured according to customer requirements
Buyer Considerations
- Check the full installed height against the available counter opening.
- Provide ventilation and maintenance access requirements; no built-in installation suitability is assumed.
- Confirm pan clearance, door swing, utilities and destination-market documents.
Frequently asked questions
Does this page include the LD freezer?
No. LC refrigerator specifications are used. Freezer temperatures are not transferred to this page.
Can it fit under any countertop?
No universal fit is promised. Check the 868 mm reference height, required clearance and installation drawing.
Are voltage and approvals confirmed for my country?
Confirm per project. Catalogue certification logos are not treated as verified certification for your selected unit.
Need a custom size or configuration?
Send the required dimensions, application, destination country, voltage, product quantity and a project drawing if available. Unknown fields can remain Confirm per project.
